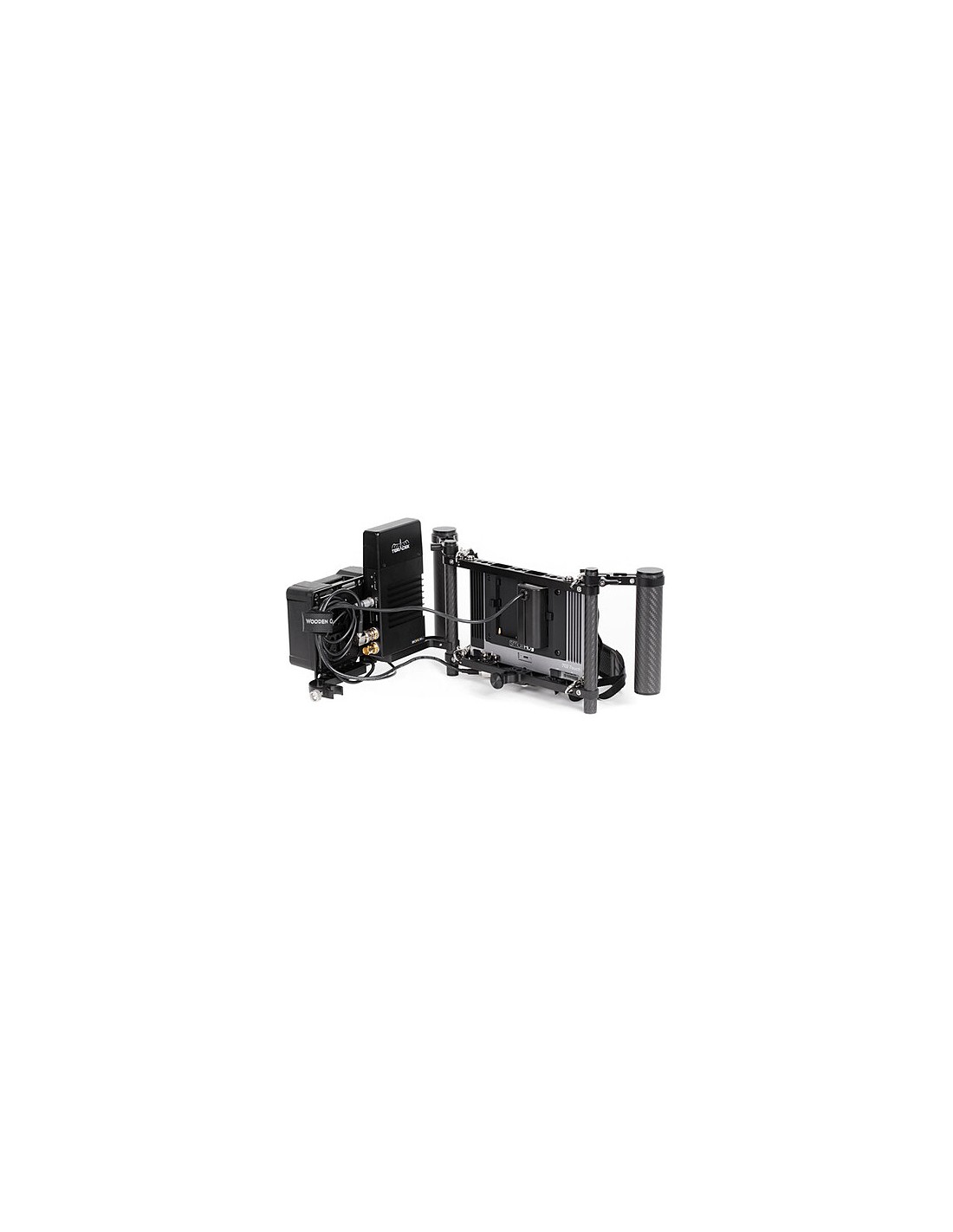

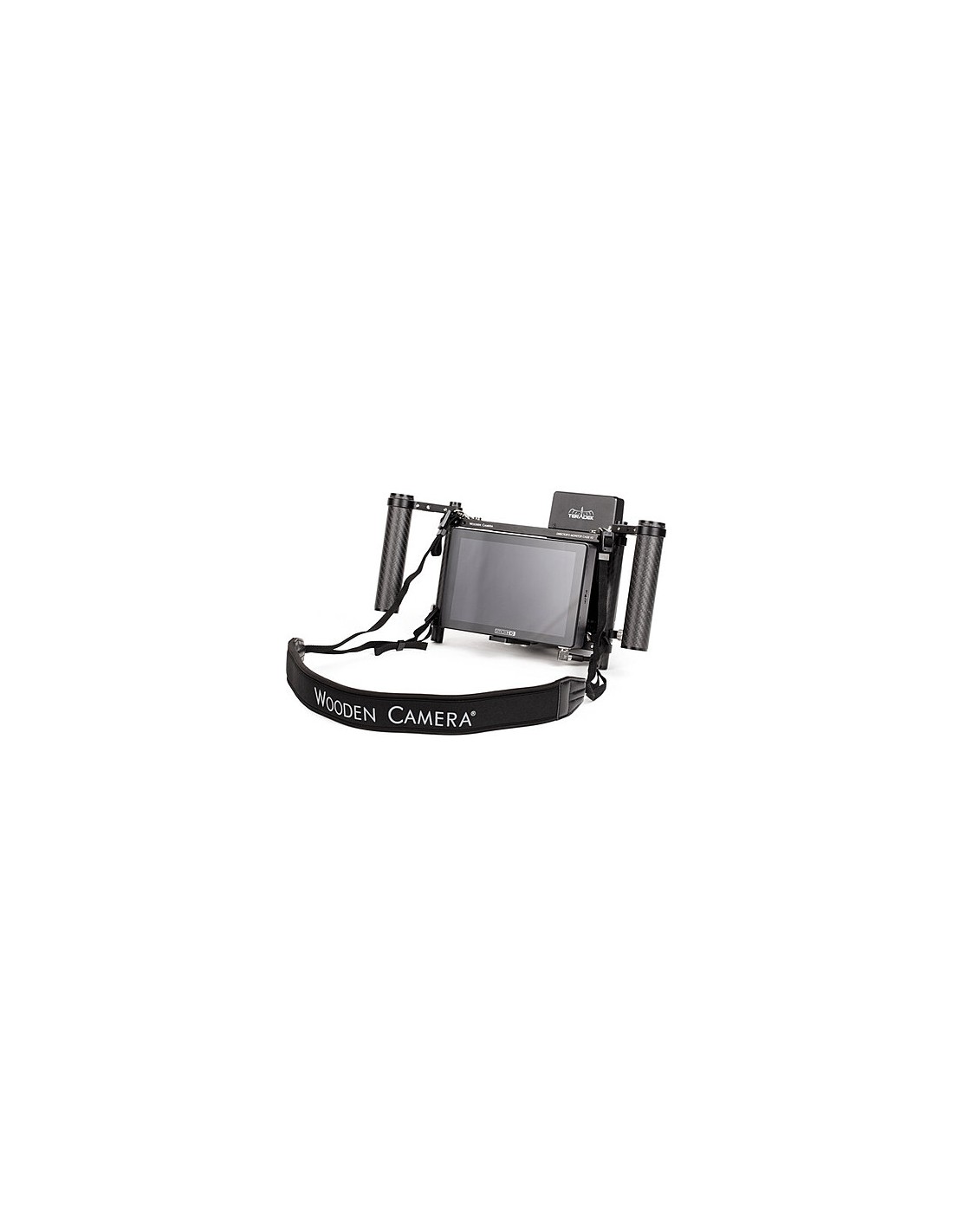

SmallHD INDIE 7 + Wooden Camera Director's cage V3

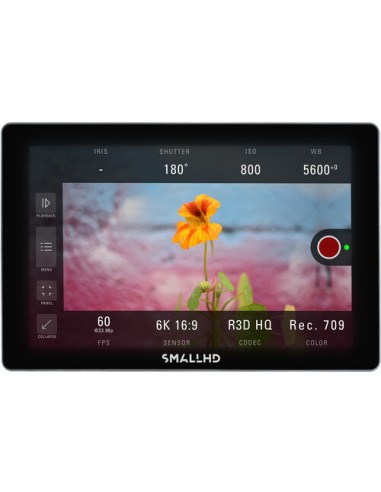

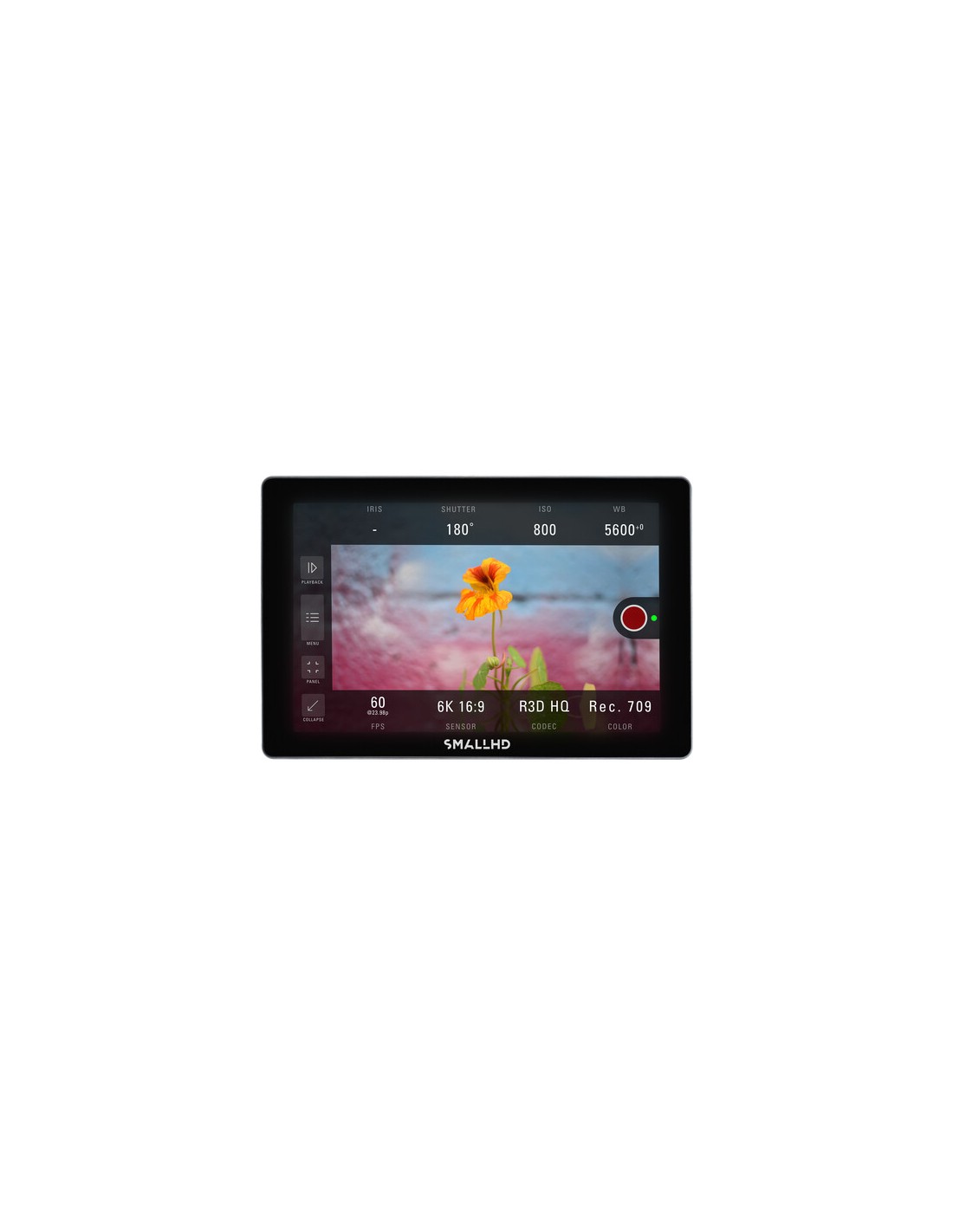

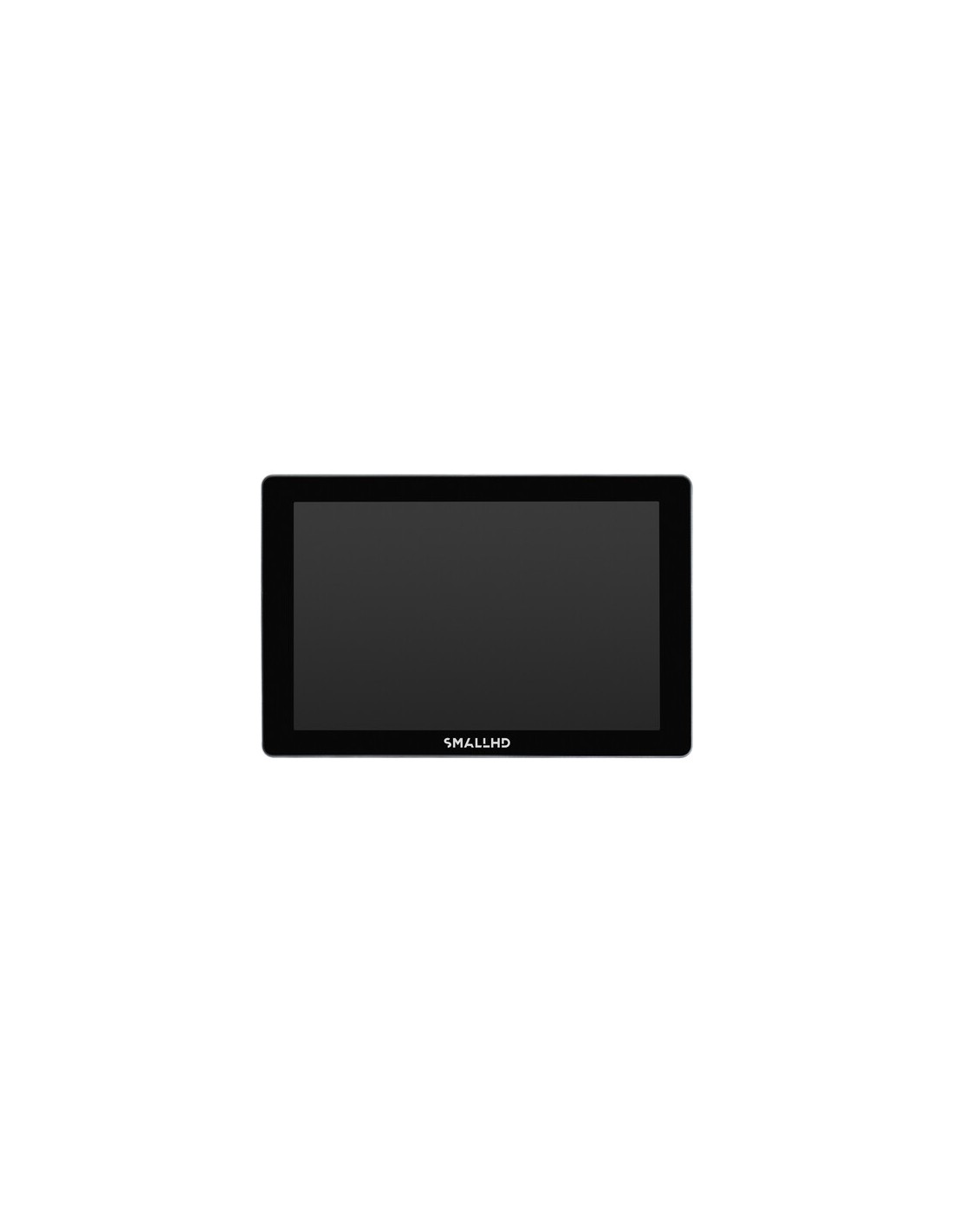

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

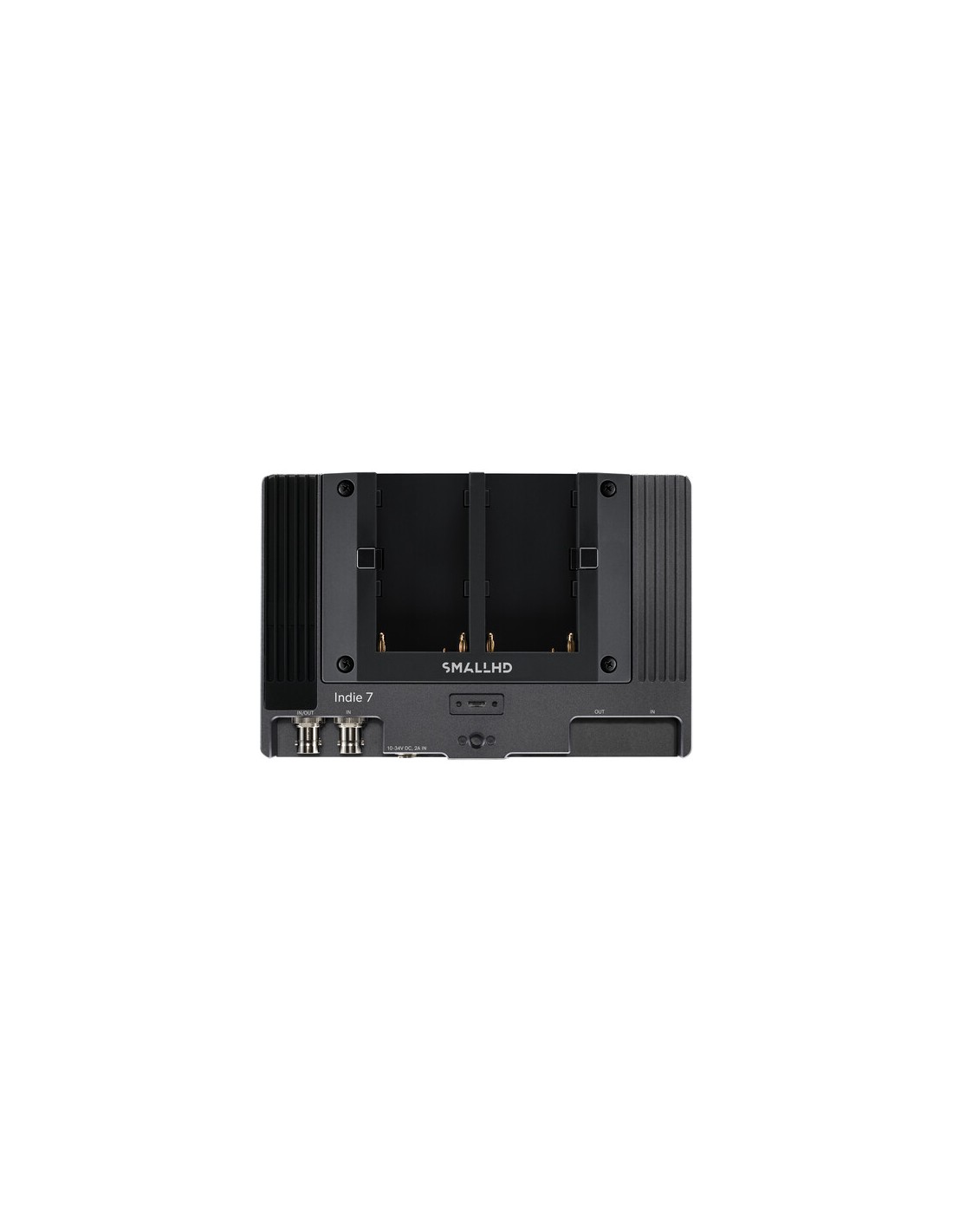

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Features

Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightness

Slim, lightweight design with 10-bit, touchscreen IPS LCD panel

HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI

Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitor

SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more

Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate

Durable aluminum chassis

Display Tools

Pixel zoom: 2x and 4x with pinch-zoom

Aspect ratios: Preset and customizable

DSLR scale: Canon 5D Mk II and Canon 7D

Custom scale: Underscan only

Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x

Image flip: Auto and manual

Image rotation: Auto and manual

Cross conversion: HDMI to SDI, SDI to HDMI

Color focus assist: Adjustable style and intensity

Peaking: Adjustable intensity

False color: Spectrum, ARRI-style, and customizable

Zebra: Dual, customizable

Waveform: Luma and RGB, customizable with region-of-interest highlighting

Vectorscope

RGB parade, customizable

Histogram: Luma and RGB

Image capture, with dedicated button and image gallery

Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu

LUT import: Via SD card or USB storage device

Image overlay: Opacity slider and blink setting

Image capture

Audio meters: Up to 8 channels
