Astera Titan Tube RGB LED Tube

This Titan Tube 8-Light Kit from Astera is a formidable setup destined for the road. The set includes eight 3.4' Titan RGB tubes and a hard, shippable charging case with an included DMX-compatible PowerBox that can actually charge the tubes with them inside. Astera has provided a full array of mounting options including sixteen holders with cotter pins for truss mounting, and sixteen spigots for joining tubes together and to be used as mounting studs for the eight included floor stands.

Astera Titan Tube RGB LED Tube Light (3.4')

With a wide 120° beam spread, the Astera Titan Tube RGB LED Tube Light is ideal for creating a soft direct light on your subject for use as an accent light or design element on location or on set. Suitable for cine, theatrical, and event productions, the wireless tube is powered by an integrated battery that will give you 20 hours of runtime on a three-hour charge. The light outputs up to 785 lux at 3.3' (4000K) and features 16 LED emitters in a 3.4' long tube that you can mount onto a set or on a stand, hang from a grid, or even hold in your bare hand. The Titan Tube has an impressive CRI/TLCI rating of 96/96, indicating high accuracy in the rendition of color. It uses RGB, mint, and amber LEDs as well as hue, saturation, and intensity control to access millions of custom colors.

Color and control are at the heart of the Titan Tube's design. The tube has an expansive white light range of 1750 to 20,000K to seamlessly blend into any ambient light situation or just exercise creative expression. You can make these adjustments locally on the fixture, or remotely via several ways such as from a console with Titan Tube wired to it. Wireless DMX, CRMX, and other types of units can adjust functions at distances up to 990'. There's also an AsteraApp that lets you control the light via Bluetooth and IR control via an optional remote. The Titan Tube ships without a power supply. Choose between an optional AC adapter and a PowerBox.

Control

You can use the Astera infrared remote control (not included) by simply pointing it at individual lights to set the desired effect.

The downloadable AsteraApp is an efficient way to quickly create a customized light show using your smart device. It can group several lights, address individual lights or groups of lights, and send complex effects with a user-defined color palette to all lights in the range.

The light can also be controlled by CRMX (wireless DMX), as the built-in receiver is compatible with all LumenRadio CRMX transmitters.

Wireless Modules

865 to 870 MHz

902 to 928 MHz

2.4 GHz

TruColor Calibration

Achieve 100% color consistency through any batch. It can hit exact color temperatures and reproduce standard filter gels.

Tunable White

Ranges from 1750 to 20,000K.

Green/Magenta Correction

Adjust green/magenta during content creation to reduce post-production work.

20-Hour Runtime

Set the length of your event and be sure that your lights won't run out while still getting the maximum brightness.

Effects

Quickly build programs out of colors and effects, trigger them, or make them match a beat.

Talkback +

Detect all available lights, set them up, check their status, and configure DMX addresses and DMX profiles.

Anti-Theft

The lights give visual and audible alarms and send notifications to the AsteraApp if they are being moved during an event.

Flicker-Free Filming

Scrambled PWM (Pulse Width Modulation) technology is used to prevent flickering when filming the lights.

Scheduled Standby Mode

You can switch the Astera Titan Tube into standby mode to save power, and schedule it to wake up when the event starts.

DJ Application

Auto BPM analyzes the beat and matches programs to it, and flash buttons can trigger special effects.

Dynamic Power Boost

The dynamic power boost feature enables the light to display the maximum brightness at all times and intensify non-white colors.

Emergency Lights

It switches to white light when AC power is cut to keep your event safe.

Other Features

The AsteraApp is packed with many additional items and new features are frequently added via software updates.

Astera PowerBox for Titan Tubes

The PowerBox for Titan Tubes charges eight LED tubes simultaneously, although up to ten Titan Tubes can be connected to each PowerBox with a special power+data cable. The maximum cable length is 49'. The PowerBox has a powerCON True1 input and output and a 5-pin XLR input and output, while it also has an RJ45 port for Art-Net and sACN protocols whose signals it converts to DMX. Designed to be used on the floor or hung from a truss, it has a 3/8"-16 thread that can be removed to allow 1/2" clamps to be attached, as well as tapped holes for safety wires. The PowerBox comes with eight 14.6" charging cables.

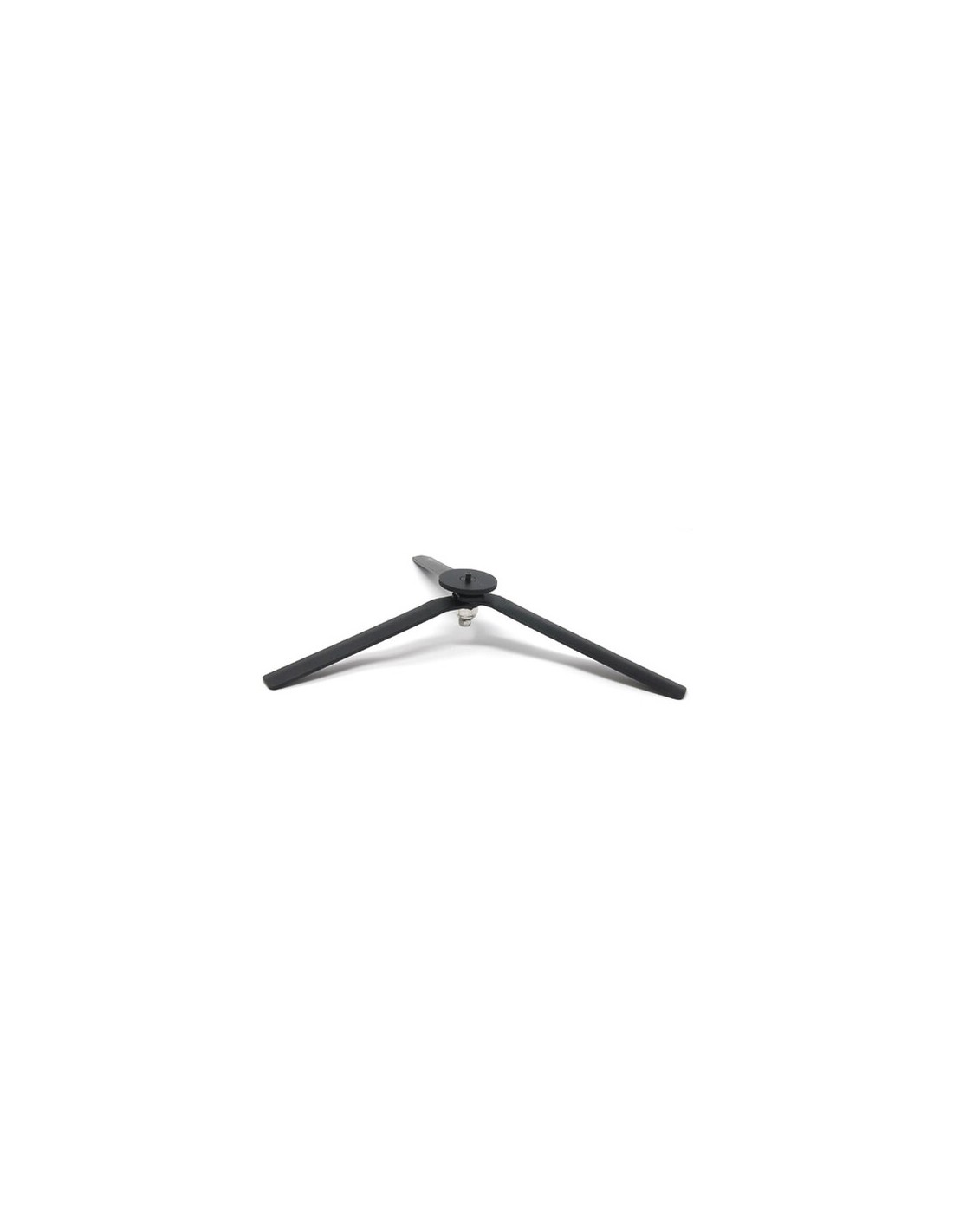

Astera Foldable Stand for LED Tube Lights

The Foldable Stand for LED Tube Lights supports Astera AX1, FP1, and FP2 tubes in a vertical position, very close to the floor, for low-angle shooting. The three legs nest together into a compact form for space-efficient packing.

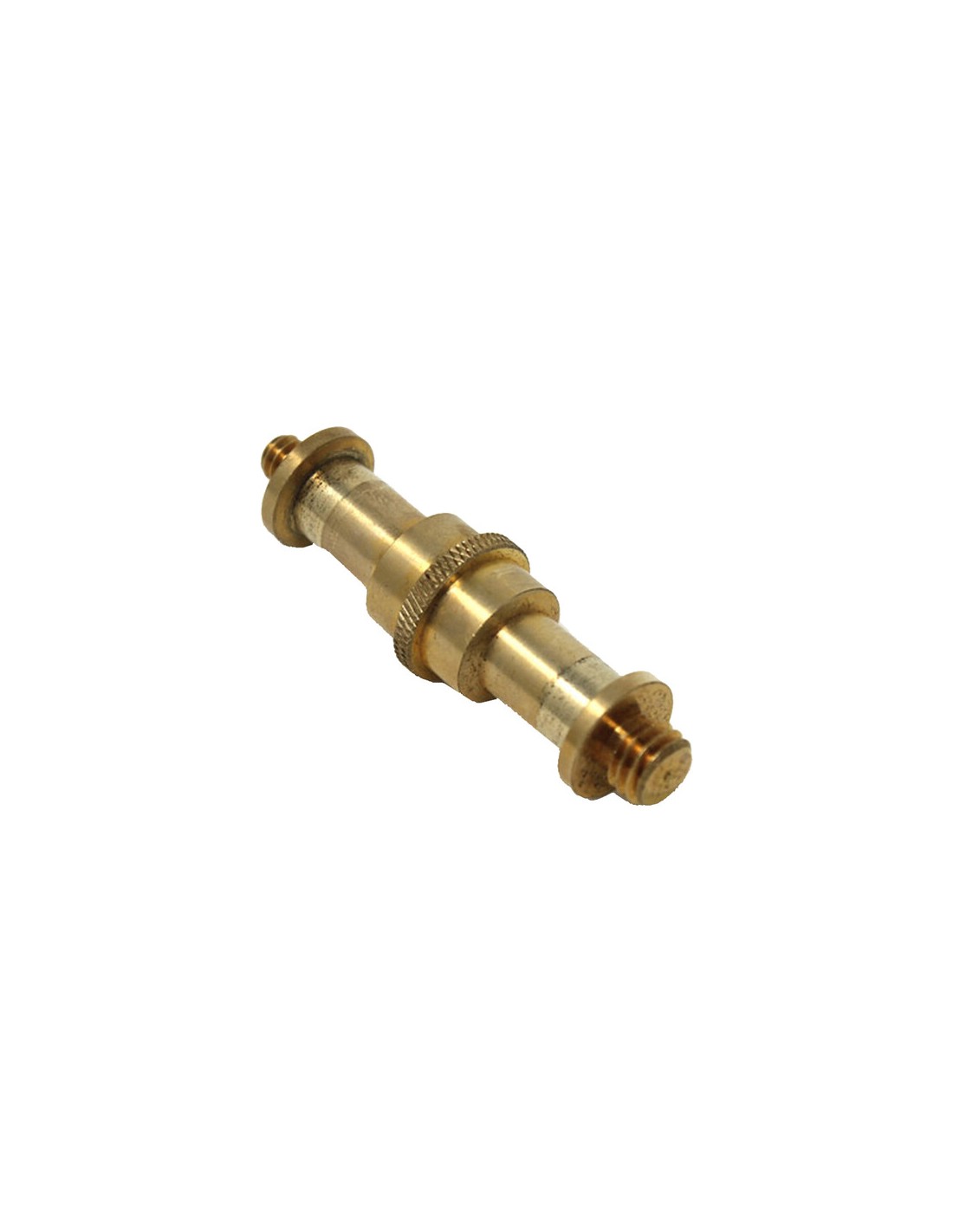

Astera Baby Pin Double-Ended Spigot

An essential accessory for mounting on Super Clamps or any piece of grip gear with female threads, the Baby Pin Double-Ended Spigot from Astera has 1/4"-20 threads at one end and 3/8"-16 threads at the other for mounting onto clamping gear and support lights with a 5/8" receiver. The stainless steel pin is 2.7" long and compatible with the AX3 bracket, AX3 housing, AX5 bracket, AX1 Holder, AX1 Wing Plate, and more.

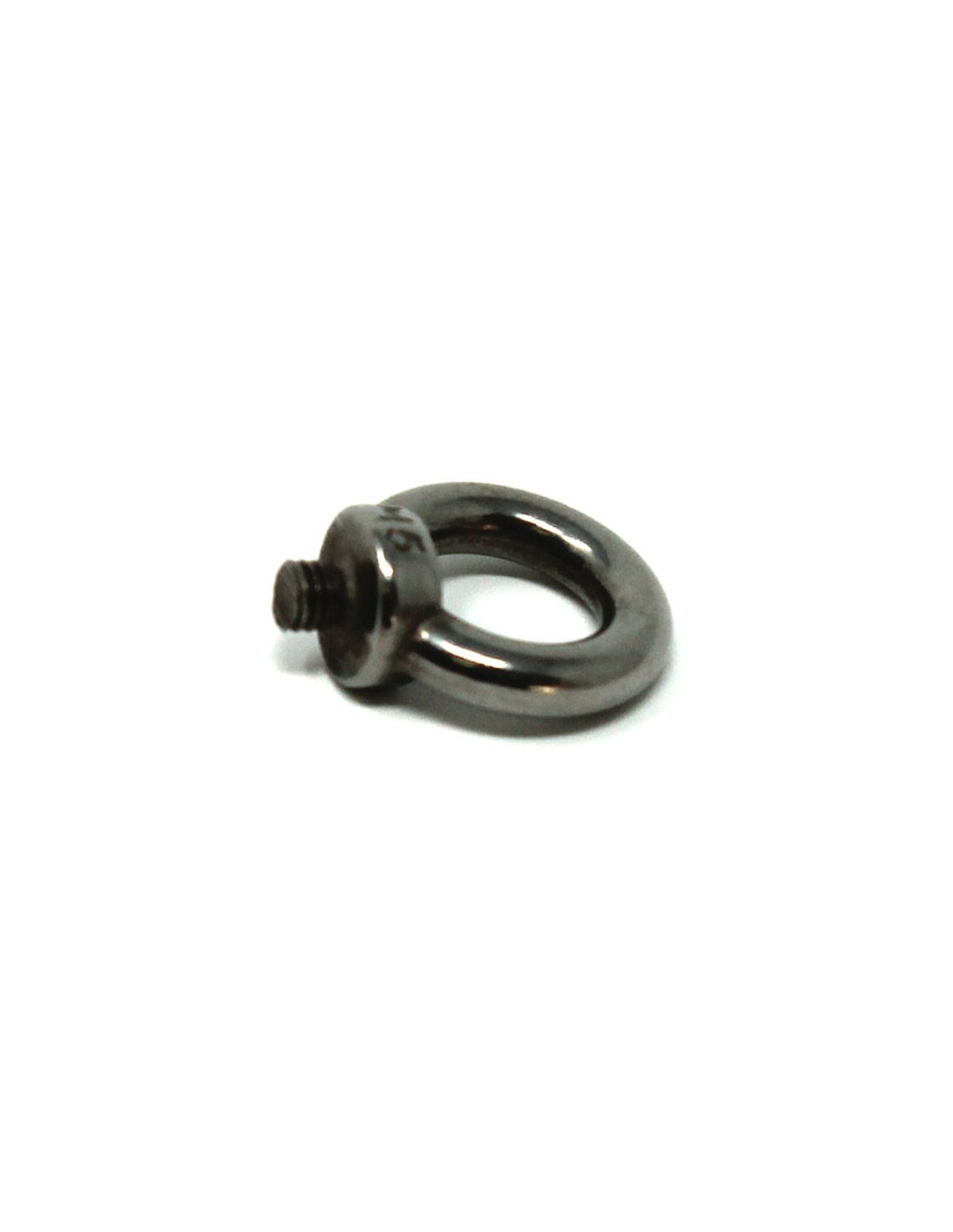

Astera M5 Eyebolt for Ax1 Pixel, Helios, Titan and Hyperion Tubes

This M5 Eyebolt for Ax1 Pixel, Helios, Titan and Hyperion Tubes from Astera screw into the tube and allow it to be suspended without a frame. They can also be used for suspending four tubes via safety wire.

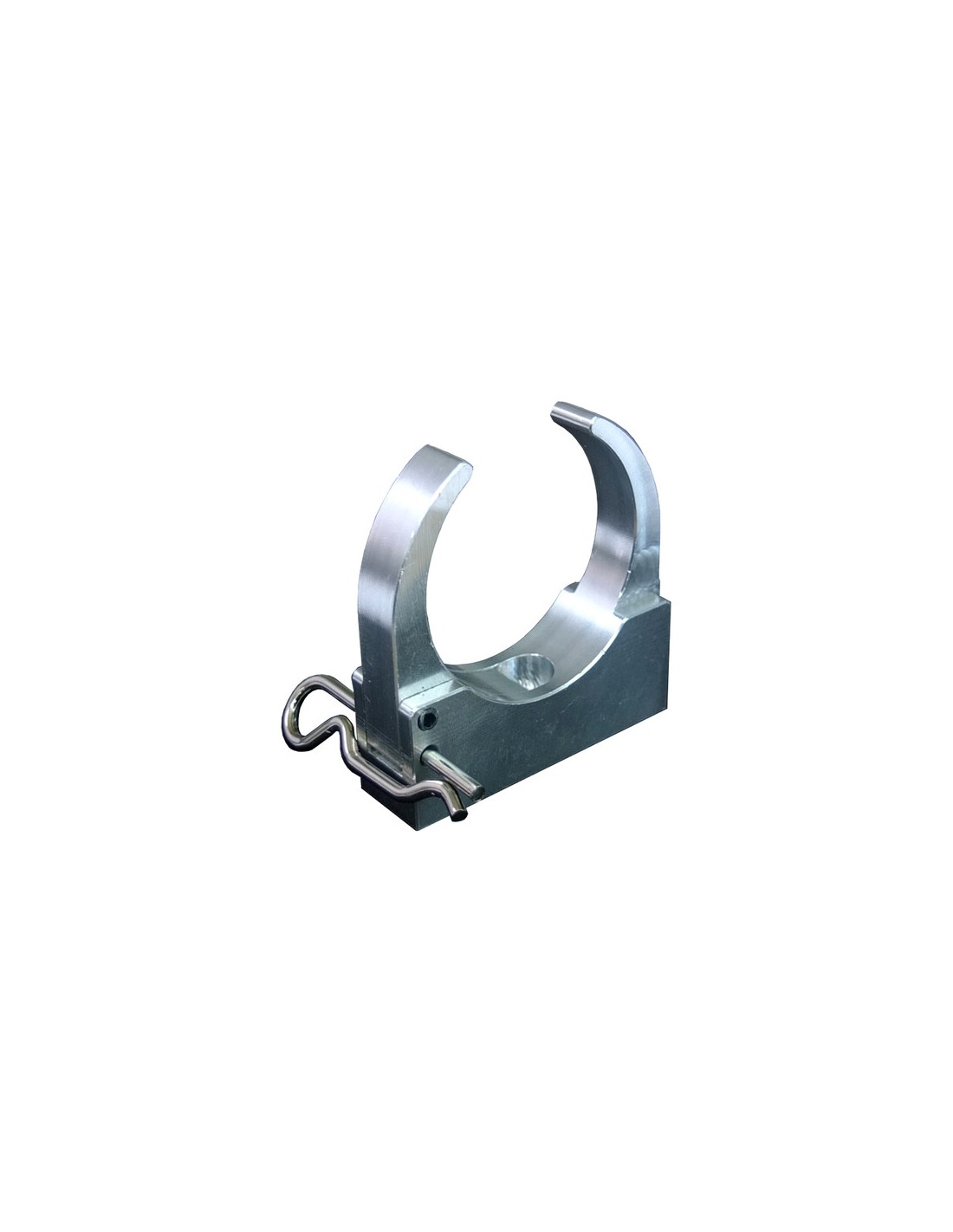

Astera Metal Holder for Mounting Tubes

This Metal Holder for Mounting Astera Tubes is used to mount FP1, FP2, and FP3 tubes to walls, truss and other structures. They can can also be secured with spax screws.

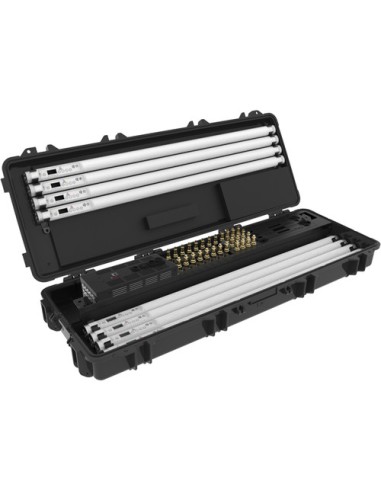

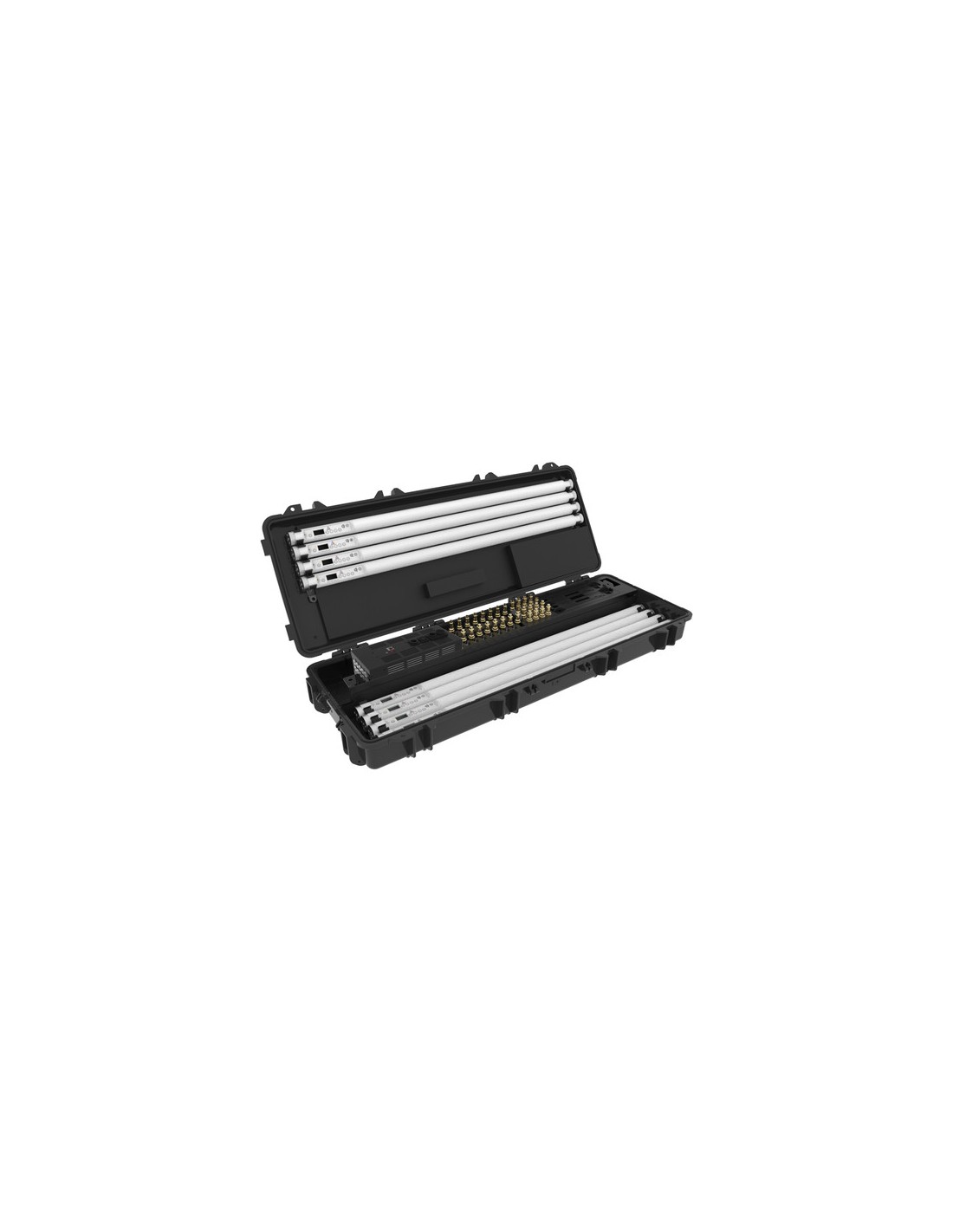

Astera Titan Tube Charging Case (Black)

Store, transport, protect, and charge up to eight Titan Tube lights at once in this black Astera Charging Case. The case features a top handle and a latch closure.

Charges eight Titan Tubes at the same time

Holds: 8 Titan Tubes, 1 x FP1-PWB PowerBox, 8 x DC Connection Cables, 16 AX1-EBLT Eyebolts, 16 AX1H Clamps, 8 x AX1-STD Stands, 16 x AX1-BLT BabyPins

Material ABS plastic

Operating Temperature: 32-104° / 0-40°

Input Voltage: 90-250 VAC

Current: 4.4A @ 115 VAC / 3A @ 230 VAC

Output Voltage: 10 x 24 VDC

Output Current: 10 x 2A

Power In: Via Powercon True1

Power Out: Via Powercon True1
